Durable Design for Hard Materials
Industrial heat exchangers require increasingly high performance. Our roller forming machine is designed to meet these demands. It is used for large water chillers, marine radiators, and base station air conditioners. It supports corrugated and staggered-tooth fins for high efficiency. The stamping force is higher than standard machines, allowing processing of stainless steel and titanium. The main motor power is 7.5 kW with frequency control. It can be adjusted for different material thicknesses. The dies are made of Cr12MoV steel and have a service life of over 500,000 strokes. Our strict quality control ensures durability. This roller forming machine is built for long-term operation.
98% Automation for High Output

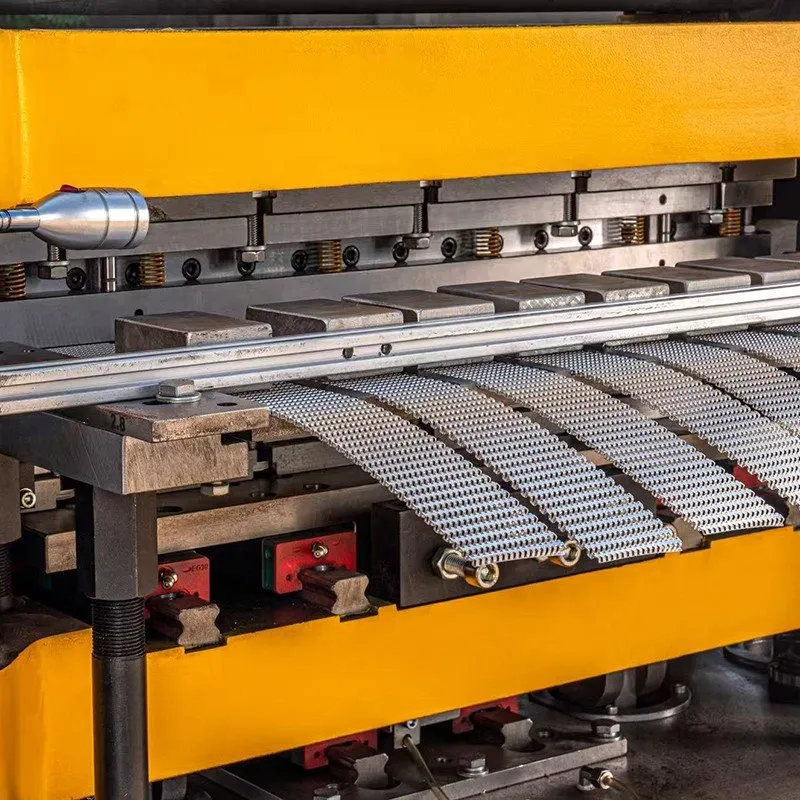

The automation level reaches 98% on this production line. It is connected to four automatic unwinders for continuous material feeding. The coil first passes through an oil removal unit. Then a servo-driven feeder with encoder control transports it to the forming section. The upper die remains fixed, while the lower die moves dynamically. The servo system enables stepless pitch adjustment from 4 to 15 mm. After forming, a sensor checks fin height. A cutting system completes the final step. This roller forming machine ensures stable high-output production.
Safety and Speed Together
The fin width range is 150–490 mm. Processing speed is 40% higher than the 350 model. Operator safety is a priority. The machine is equipped with a removable guard and a safety light curtain. It complies with GB 5226.1 standards. We provide a one-year warranty and 24/7 customer support. Backed by our high-tech enterprise certification and CE certification, this roller forming machine is a reliable choice for customers.
Product Specifications
|
Parameter |
Specification |
|
Model |
Roller Forming Machine |
|
Material |
Aluminum, Copper, Stainless Steel, Titanium |
|
Fin Type |
Corrugated, Staggered-tooth |
|
Main Motor Power |
7.5 kW |
|
Die Material |
Cr12MoV |
|
Die Life |
>500,000 Strokes |
|
Fin Width Range |
150 – 490 mm |
|
Pitch Range |
4 – 15 mm |
|
Automation Level |
98% |
|
Warranty |
1 Year |
