China Customized Fin Press Machine Manufacturers - Buy Discount Fin Press Machine

Precision Fin Press Machines & Integrated Fin Stamping Lines - Tailored for HVAC, Radiator, Condenser, and Evaporator Heat Exchanger Production

Don't fit your fin design to a rigid standard machine. Suichang Lvye designs and manufactures custom fin press machines, precision stamping dies, servo feeders, and cutting units matched engineered to your exact material specifications, fin geometry, and production targets.
Materials Processed: Aluminum foil, copper, stainless steel, specialty alloys
Fin Configurations: Straight, serrated, louvered, and custom profiles
Complete Turnkey Capability: Uncoiler + Servo Feeder + Fin Press + Precision Die + Servo Cutter + Stacker

High-speed Fin Forming Machine
This high-speed fin forming machine is designed for small refrigeration units. It handles materials such as aluminum, copper, and stainless steel, and can easily produce both straight and louvered
High-precision Fin Forming Machine
Your clients need efficient cooling for cabinet air conditioners. Our high-precision fin forming machine meets that need. It processes aluminum, copper, and stainless steel, and supports wave-type
Energy-saving Fin Forming Machine
The medium industrial cooling market is growing rapidly. Our energy-saving fin forming machine provides the performance your clients need. It is suitable for commercial central air conditioning
Long-life Fin Forming Machine
Industrial heat exchangers require durable and high-strength fins. Our long-life fin forming machine is designed to handle these demanding applications. It is suitable for large water chillers and
High-efficiency Fin Forming Machine
Large industrial systems demand high precision. Our high-efficiency fin forming machine is designed to meet these requirements. It is suitable for subway air conditioning systems, LNG cold boxes, and
Fully Automatic Fin Forming Machine
Some applications require specialized equipment. Our fully automatic fin forming machine is designed for these conditions. It is used for nuclear radiators and aerospace heat exchangers. It processes

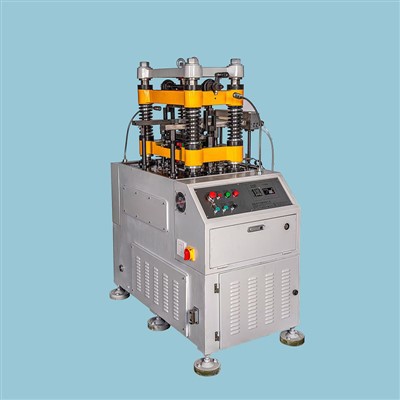

Hydraulic Fin Forming Machine
Some applications require processing hard materials. Our hydraulic fin forming machine is designed to meet this challenge. It is suitable for home air conditioners and mini refrigerator condensers,
Pneumatic Fin Forming Machine
Commercial cooling applications require strong and durable fins. Our pneumatic fin forming machine is designed to deliver the necessary performance. It is suitable for cabinet air conditioner outdoor
CNC Fin Forming Machine
Medium- to high-load applications require reliable equipment. Our CNC fin forming machine is designed to meet these demands. It is suitable for commercial central air conditioning systems and
Roller Forming Machine
Industrial heat exchangers require increasingly high performance. Our roller forming machine is designed to meet these demands. It is used for large water chillers, marine radiators, and base station
Aluminum Foil Fin Forming Machine
Extreme applications require extremely high precision. Our aluminum foil fin forming machine is designed to meet these standards. It is widely used in subway air conditioning systems, LNG cold boxes,
Copper Fin Forming Machine
Special industries demand exceptional performance and reliability. Our copper fin forming machine is designed for these high-end applications. It is suitable for nuclear radiators and aerospace heat

First 12 Last

Why Fin Press Selection Requires More Than Just Tonnage

Production Variable	Impact on Equipment Setup	Suichang Lvye Solution
Material & Thickness	Determines required press tonnage, die clearance, and lubrication conditions.	Press force is selected according to the material properties and forming requirements.
Fin Geometry & Pitch	Determines stroke requirements, feeding accuracy, die configuration, and forming speed.	Servo feeding can be synchronized with the press cycle to maintain consistent material positioning.
Production Volume	Affects machine duty cycle, thermal management, feeding method, and the need for automated cutting or stacking.	Continuous production-line configurations can integrate automatic feeding and servo cutting for higher-volume applications.

Key Components

High-Rigidity Fin Press Unit

Engineered for continuous duty with minimal bed deflection, ensuring long die life and consistent collar height across wide strip widths.

High-Precision Servo Feeder

Eliminates pitch variations. Precision pitch control guarantees seamless downstream tube insertion and core assembly.

Custom Fin Stamping Dies

In-house die design and manufacturing covering progressive, louvered, and serrated configurations. Tested and verified prior to shipment.

Rotary / Guillotine Servo Cutting Unit

Programmable cut-to-length systems synchronized with press speed for burr-free fin ends.

Technical Specifications

Parameter	Standard Range / Option	Customization Capability
Machine Type	High-Speed Fin Press / Forming System	Configured according to production requirements and available floor space
Compatible Materials	Aluminum, Copper, Stainless Steel	Suitable for strip thicknesses from 0.05 mm to 0.30+ mm, subject to material and forming conditions
Fin Profiles	Straight, Serrated, Wavy, Louvered	Tooling designed according to the customer's fin drawing and specifications
Feeding Accuracy	±0.02 mm with Servo-Driven Feeding	Feeding system synchronized with the press PLC
Control System	PLC + Touchscreen Interface	Multi-language interface and Industry 4.0-ready integration options
Power Supply	220V / 380V / 415V / 480V, 50/60Hz	Adapted to the customer's local factory power supply

Engineered & Manufactured

Since 2008, Suichang Lvye has specialized exclusively in fin-forming technology. Operating our own R&D facility, CNC machining centers, and die-making shop, we hold 32 patented technologies and maintain ISO-certified quality management systems.

Pre-Shipment Testing (FAT): Every machine is factory-tested using your actual material and dies before dispatch.

On-Site Commissioning: Installation guidance, tooling setup, and operator training provided globally.

Technical Evaluation Checklist

To evaluate your project and provide a guaranteed technical solution, please provide the following details:
• Fin Drawing or Physical Sample (Include pitch, height, width, and louver specs)
• Material Type & Thickness Range (e.g., Aluminum 3003, 0.11 mm)
• Target Production Output (Fins per minute or required daily volume)
• Line Configuration (Standalone press vs. Fully automated continuous line)
[ Submit Your Fin Drawings for Technical Review ]

FAQ

Q: Can one fin press produce different fin heights and profiles?

A: Changing fin heights or primary geometries (such as switching from straight to serrated) typically requires changing the stamping die or exchanging specific tooling inserts. If your production demands multiple fin sizes, we can design quick-change tooling modules or engineer a multi-station press setup to minimize changeover downtime.

Q: How do you determine the correct press capacity for our fin design?

A: Press capacity is calculated based on material tensile strength, strip thickness, fin width, collar height, and die design (number of progression stages). We evaluate your fin drawing using forming-force formulas rather than relying on standard rules of thumb, preventing equipment overload while avoiding unnecessary capital expenditure on an oversized press.

Q: Can your machines process ultra-thin aluminum foil without wrinkling or tearing?

A: Yes. Processing thin foil (down to 0.05 mm) requires precise tension control, accurate strip lubrication, and strict bed rigidity. Our press frames and servo feeding systems are designed to maintain consistent strip tension and feeding alignment, ensuring uniform collar height without material distortion.

Q: Do you supply the complete fin line including uncoiler, die, and cutting system?

A: Yes. Suichang Lvye provides turnkey fin production solutions, including decoilers, precision servo feeders, high-rigidity presses, custom progressive dies, servo cutting units, and automatic fin stackers. Every component is synchronized through a unified PLC control system.

Q: Can we use our existing stamping dies on your fin press?

A: In most cases, yes. Provide us with your die dimensions, bolster plate mounting specs, shut height, and stroke requirements during the technical evaluation. We can adapt our press bolster and daylight height to ensure full compatibility with your existing tooling.

Q: How do you test and verify the machinery before shipment?

A: We perform a strict Factory Acceptance Test (FAT) prior to dispatch. We request your actual raw material strip to conduct continuous trial runs at full production speed, verifying dimensional tolerance, fin pitch accuracy, cut quality, and system stability. You will receive a complete test video and inspection report before shipment.

Q: What is the typical lead time for a customized fin press line?

A: Standard fin presses with standard configurations typically carry a lead time of 30–45 days. Fully customized continuous production lines featuring specialized multi-stage dies generally require 60–90 days, depending on tooling complexity and pre-shipment testing requirements.

Q: What after-sales support and installation services do you provide globally?

A: We provide complete technical support for global installations:
- On-site installation guidance, die setup, and operator training by qualified technicians.
- Remote diagnostic support via integrated PLC connectivity for quick troubleshooting.
- Comprehensive spare parts kits (punches, dies, feeding rollers, cutting blades) dispatched within 24–48 hours for standard wear items.

We are one of the most professional fin press machine manufacturers in China, also support customized service with low price. We warmly welcome you to buy discount fin press machine for sale here from our factory. If you have any enquiry about quotation, please feel free to email us.
