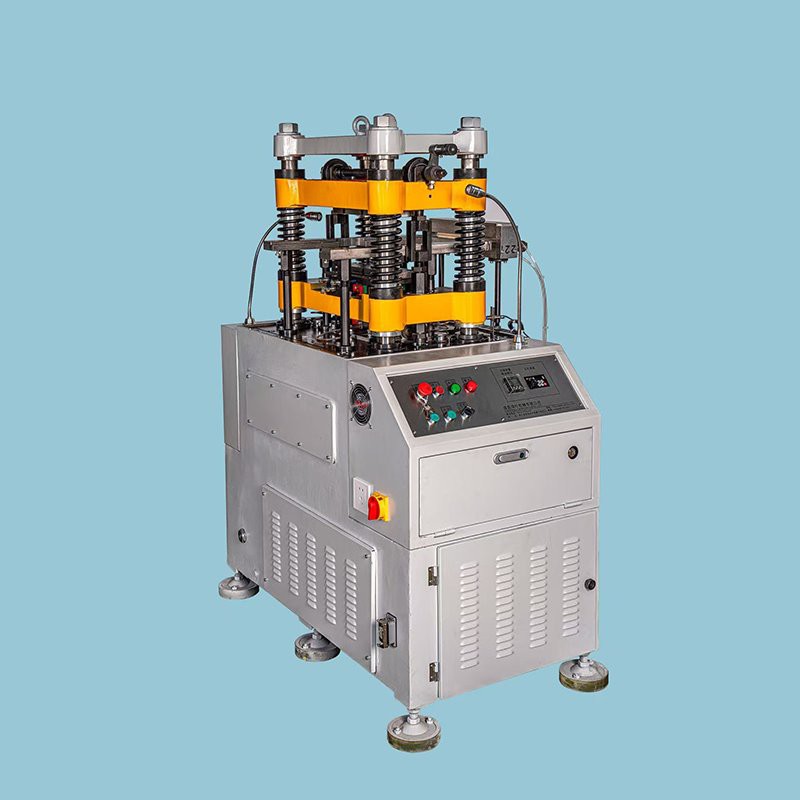

Power for Hard Materials
Some applications require processing hard materials. Our hydraulic fin forming machine is designed to meet this challenge. It is suitable for home air conditioners and mini refrigerator condensers, while offering greater stamping force than standard high-speed machines.

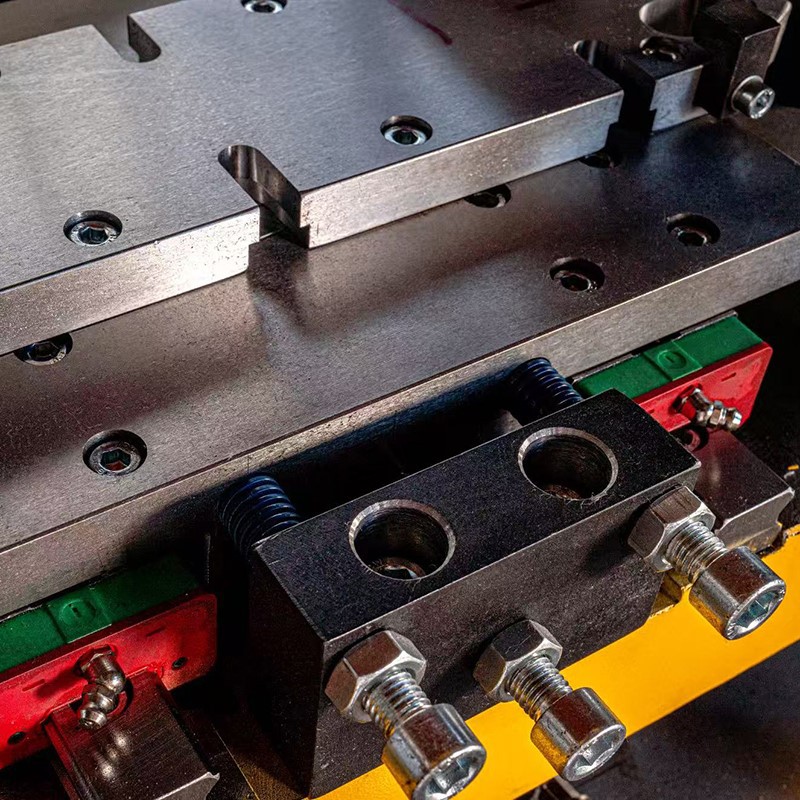

The machine processes stainless steel and titanium with ease, setting it apart from conventional units. Our R&D team has reinforced key components to meet these demands. The die table flatness is maintained within 0.05 mm, ensuring fin precision of ±0.04 mm even when working with hard materials. Clients such as BYD choose us for our expertise in processing high-strength materials. This machine is built to handle demanding applications reliably.
Clear and Reliable Workflow
The workflow is simple and efficient. The system operates with a single-coil automatic unwinder. The coil passes through a magnetic powder brake for tension control before entering the main unit.

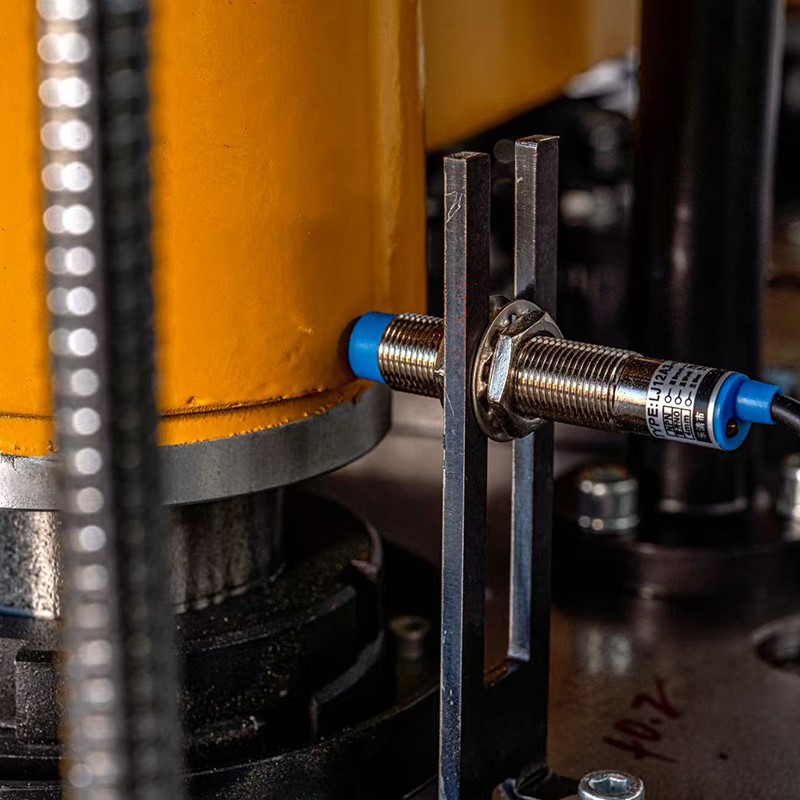

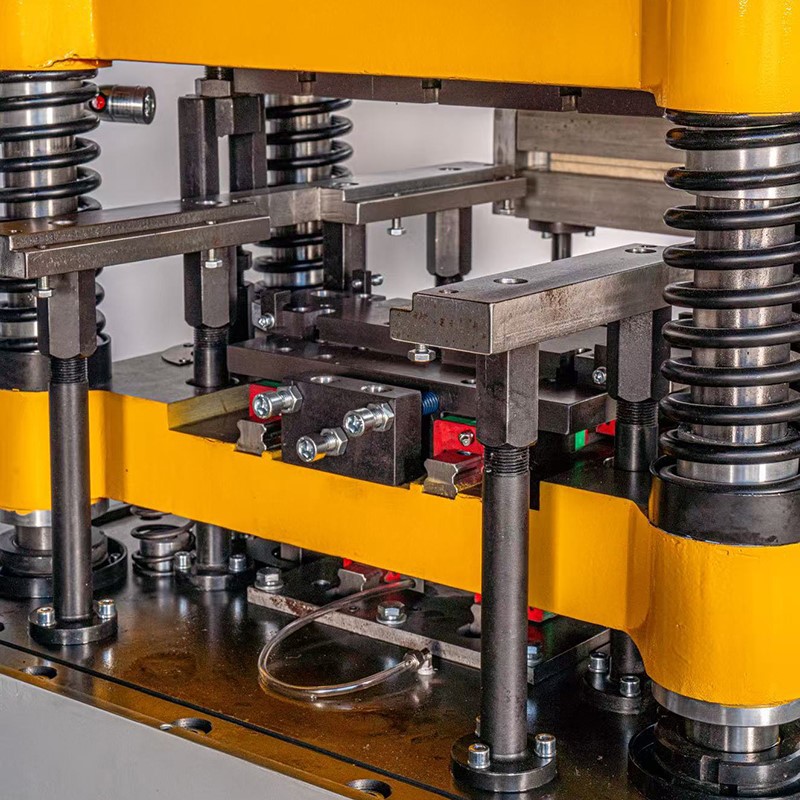

The upper die remains fixed, while the lower die is driven by a servo system for stamping. After forming, a photoelectric sensor checks the fin height. The cutter then processes widths ranging from 100 to 297 mm, and a stacker neatly arranges the finished fins. A PLC system controls the entire process, making the machine easy to operate.
Flexible Speed for Small Batches
This machine is designed with flexibility in mind. A frequency conversion system allows the stroke rate to be adjusted from 50 to 150 strokes per minute, making it suitable for small batches and varying product sizes.
An oil removal system interface is reserved on top, enabling future upgrades. As outlined in our FAQ, we support custom orders with a minimum order quantity of one unit. Sample production can be completed within two weeks. Our 41-person team is ready to provide full support. This machine is a reliable and flexible solution for your production needs.
Product Specifications
|
Parameter |
Specification |
|
Model |
Hydraulic Fin Forming Machine |
|
Material |
Aluminum, Copper, Stainless Steel, Titanium |
|
Fin Type |
Straight, Louvered |
|
Die Table Flatness |
≤0.05 mm |
|
Fin Forming Precision |
±0.04 mm |
|
Stroke Rate |
50–150 strokes/min |
|
Cutting Width |
100–297 mm |
|
Control System |
PLC |
|
Minimum Order |
1 unit |
|
Sample Lead Time |
2 weeks |
