Precision for Large Industrial Systems

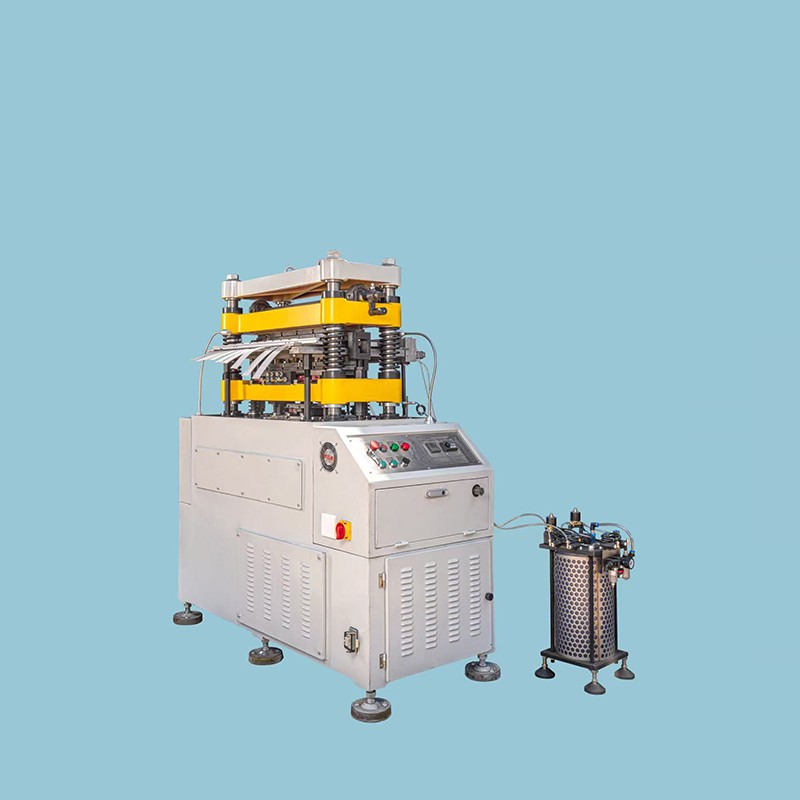

Large industrial systems demand high precision. Our high-efficiency fin forming machine is designed to meet these requirements. It is suitable for subway air conditioning systems, LNG cold boxes, and petrochemical heat exchangers. The machine supports both plate-fin and louvered fin types and performs reliably under demanding conditions.
Fin height and pitch precision reach ±0.01 mm, representing a leading level in the industry. With a nominal force of 630 kN and a stroke rate of 150–220 strokes per minute, it is well suited for high-volume production. Backed by over ten years of R&D experience, our team ensures this level of precision and performance.
Full Line Setup for Complete Production
The production line is fully integrated. It operates with six automatic unwinders and an online cleaning device. The coil passes through leveling and tension control before entering the main unit.

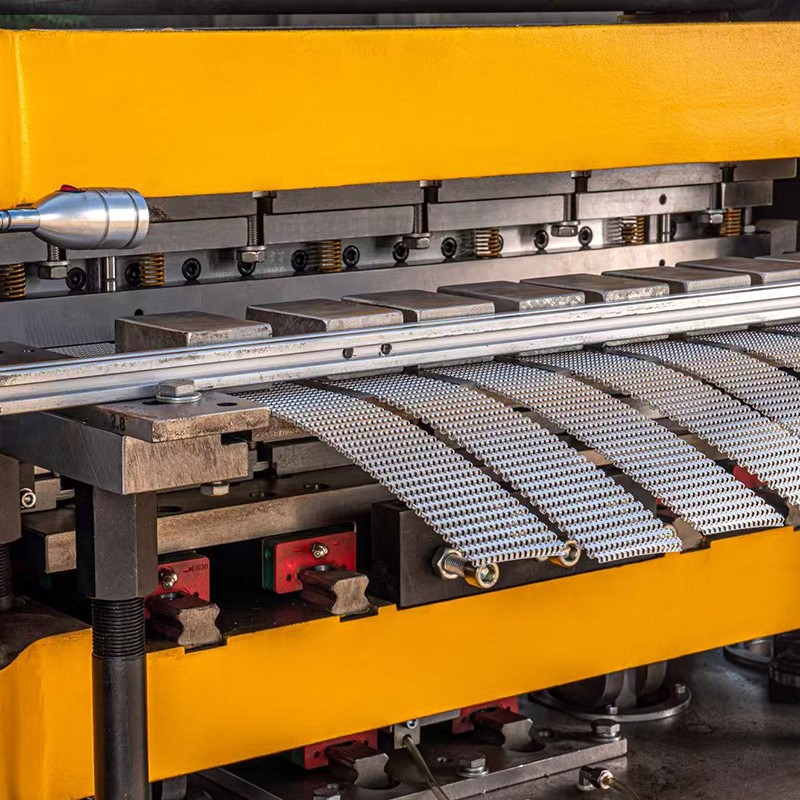

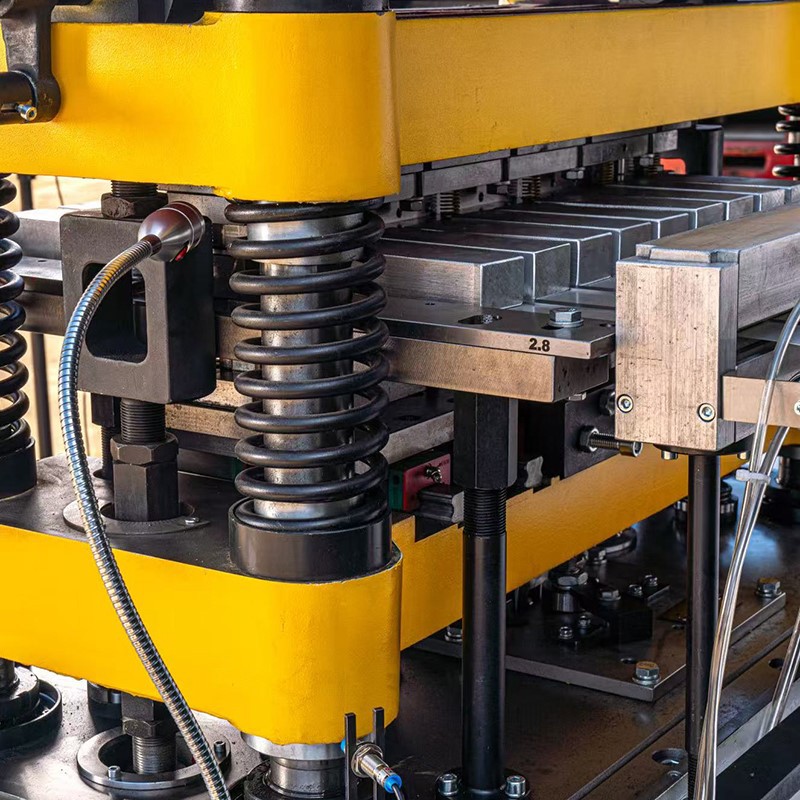

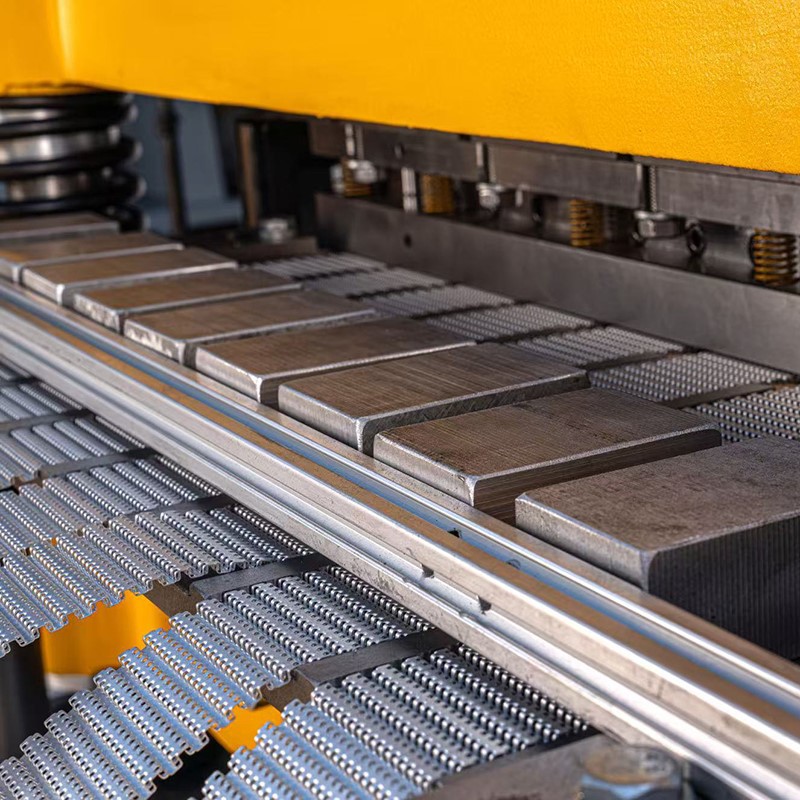

Electric cylinders drive a multi-station forming system, while sensors provide real-time feedback. The control system automatically adjusts force and speed for optimal performance. The cutter operates in both directions, with a cutting length range of 200–590 mm. A vacuum suction device stacks the finished fins efficiently. This machine is designed to handle large-scale production with ease.
Easy Maintenance for Lower Costs
Ease of maintenance is a key design feature. The machine is equipped with an independent lubrication system. The cam uses an oil bath lubrication method, while guide rail oil is automatically recycled, helping to maintain a clean working environment.
The system also supports remote fault diagnosis, enabling faster troubleshooting and reduced downtime. We offer a one-year warranty, and our service team is available 24/7. Our 41 professionals are ready to provide full support. This machine delivers reliable, high-level performance every day.
Product Specifications
|
Parameter |
Specification |
|
Model |
600 High-Speed Fin Forming Machine |
|
Material |
Aluminum, Copper, Stainless Steel |
|
Fin Type |
Plate-fin, Louvered |
|
Precision (Height/Pitch) |
±0.01 mm |
|
Nominal Force |
630 kN |
|
Stroke Rate |
150–220 strokes/min |
|
Cutting Length |
200–590 mm |
|
Lubrication System |
Independent |
|
Warranty |
1 year |
|
Service |
24/7 hotline |
