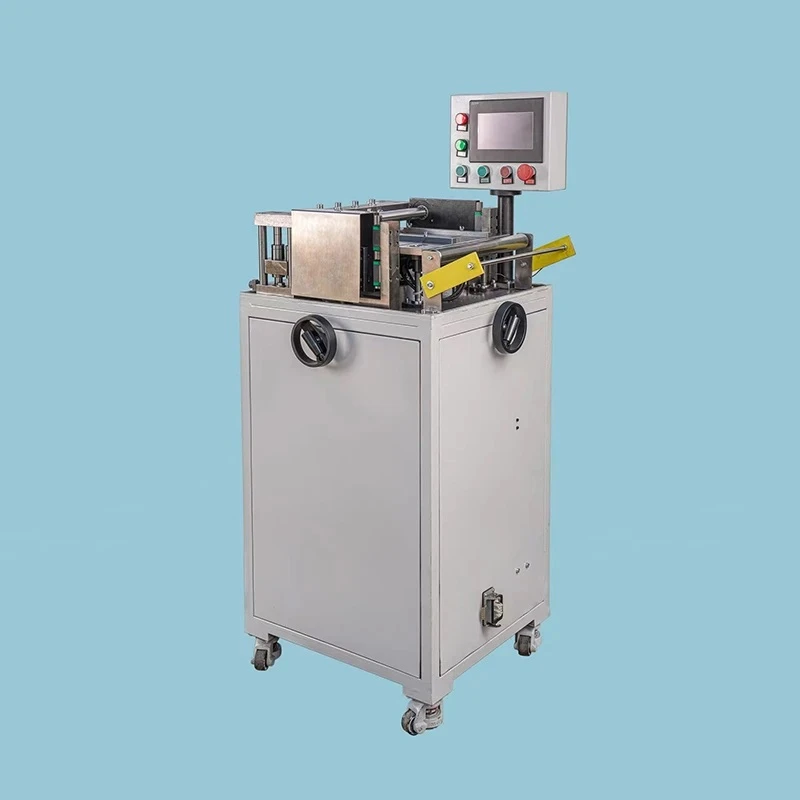

Servo Guillotine Cutter

Our Servo Guillotine Cutter is a high-precision guillotine cutting device purpose-built for small heat exchange equipment. Targeting fin processing scenarios for household air conditioners and mini refrigeration units, it addresses core industry pain points including low cutting precision for small-size fins, excessive burrs on cut surfaces, and poor compatibility of standalone units. The equipment is compatible with various conventional fin structures such as flat type and louver type, and supports common heat exchange base materials including 0.1–0.3 mm aluminum foil and 0.1–0.25 mm copper foil. It is a core supporting equipment for small heat exchanger manufacturers to realize standardized and mass production.

As an original equipment manufacturer with 18 years of experience in fin equipment manufacturing, we have incorporated on-site experience from serving hundreds of end customers and purchasers at home and abroad into the R&D of the Servo Guillotine Cutter. We have optimized the equipment structure in view of the layout characteristics of small and medium-sized workshops and the production rhythm of small-batch and multi-variety production, greatly reducing the threshold for operation and maintenance while ensuring precision.



In terms of production line collaboration, the Servo Guillotine Cutter can form a fully automatic processing unit with a fin forming machine of the same specification and a single-roll automatic uncoiler. The formed continuous fins are fed into the cutting area via the conveyor roller table, and the tool holder driven by a servo motor completes fixed-length cutting. The subsequent processes including photoelectric counting, belt conveying and automatic material collection realize full-process unmanned operation, with a single-machine cutting efficiency of up to 30 cuts per minute.

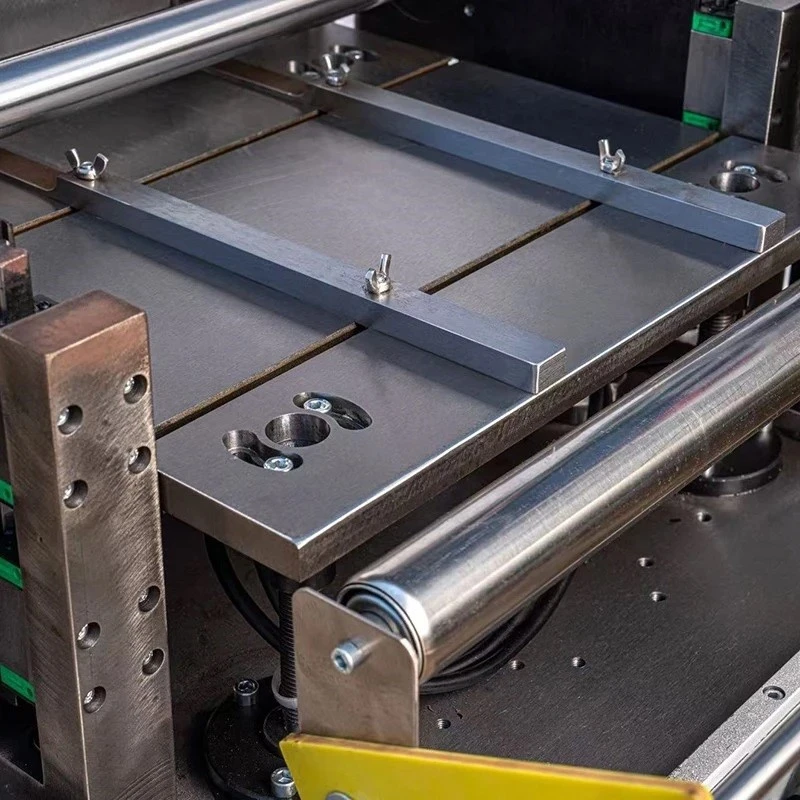

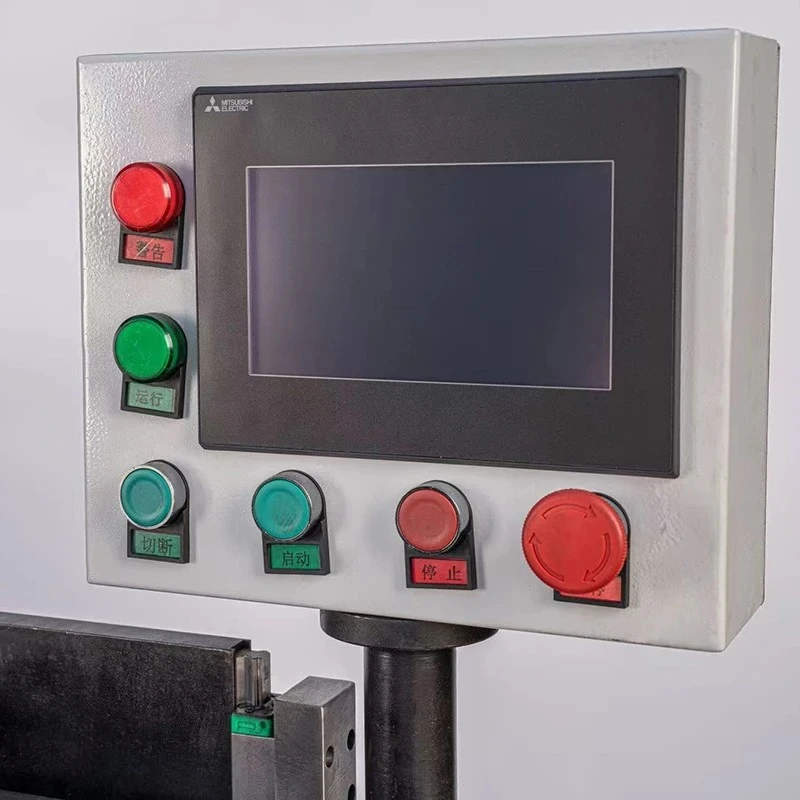

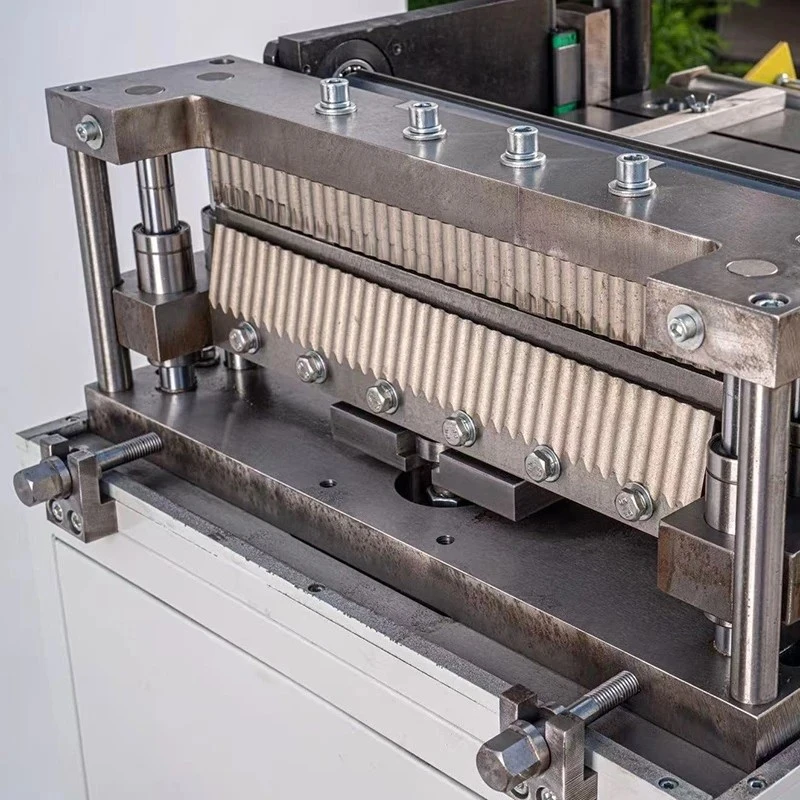

The equipment adopts a pneumatic material pressing structure, which firmly fixes the fin base material during cutting to avoid dimensional deviation caused by displacement, with the core cutting accuracy controlled within ±0.05 mm. The whole machine occupies only 0.5 ㎡, adapting to the compact layout of small and medium-sized workshops. It is also equipped with an emergency stop button and safety light curtain, and its operation safety standard complies with GB 5226.1. The tool holder adopts a quick-release design, and the tool change and maintenance time is no more than 15 minutes.

This Servo Guillotine Cutter is mainly oriented to small heat exchange equipment production scenarios. It is widely used in fin processing of household air conditioner indoor units, fin cutting of mini refrigerator condensers, mass production of small refrigeration accessories and other fields. It can also meet the fin processing needs of small household appliances and small HVAC equipment, and is a core equipment for small heat exchanger manufacturers to increase production capacity and stabilize product quality.

We are a professional fin forming equipment manufacturer integrating design, manufacturing and maintenance, with 18 years of in-depth industry experience. Our factory covers an area of over 10,000 square meters and is equipped with advanced production and processing equipment such as machining centers, precision grinding machines and slow-feeding wire-cut EDM. We build core product competitiveness based on 32 utility model patents.



Our core technical team all have more than 10 years of industry experience. We have established an independent R&D center and testing workshop, and independently control the whole process from structural optimization to process upgrading. Our equipment production capacity and sales volume rank among the top in the domestic industry. At present, our products have covered most provinces and cities in China, and are exported to more than 20 countries and regions such as the United States, Vietnam, Turkey and Russia, winning long-term recognition from customers at home and abroad.

Servo Guillotine Cutter goes through multiple inspection stages from component incoming inspection to finished product delivery.

Before delivery, the equipment must undergo 100% full inspection with material and continuous trial operation. After confirming that all indicators such as cutting accuracy and operation stability meet the standards, it can be delivered with a formal product certificate. Key core components are sourced from high-quality industry supply chains, and servo systems and transmission components have undergone repeated life tests. We support customers to entrust third-party institutions to conduct on-site inspection, and the quality control process is transparent and open throughout the process to ensure that every equipment delivered to customers is stable and reliable.

We provide customers with full-cycle service coverage covering pre-sales, in-sales and after-sales. In the pre-sales stage, a professional technical team provides one-on-one demand docking, and can customize supporting production line solutions according to the customer's workshop layout and production capacity planning, providing detailed equipment parameters and drawings for reference. In the in-sales stage, a dedicated contact person is arranged to synchronize production progress, and pre-assembly and commissioning are completed before delivery to ensure that the equipment can be put into production quickly after arrival.

After-sales service includes one-year free warranty. Parts damaged by non-human factors are repaired and replaced free of charge during the warranty period. We have a 24-hour service hotline. Domestic customers can enjoy on-site maintenance within 48 hours. We also provide long-term services such as on-site operation training and regular inspection to ensure long-term stable operation of the equipment.
